Home > Products > PVC strip curtain/ PVC sheet > Transparent PVC Strip Curtain

Transparent PVC Strip Curtain

Productivity:
50000rolls Per Month
Place of Origin:
Hebei
Supply Ability:
50000rolls Per Month

Basic Info

Model No.:  transparent

Product Description

Model NO.: transparent Kind: PVC Plastic Sheet Specification: 0.3mm 0.5mm 0.8mm 1mm 2mm 3mm 4mmetc. Material: PVC Trademark: starry Origin: Hebei Packaging & Delivery

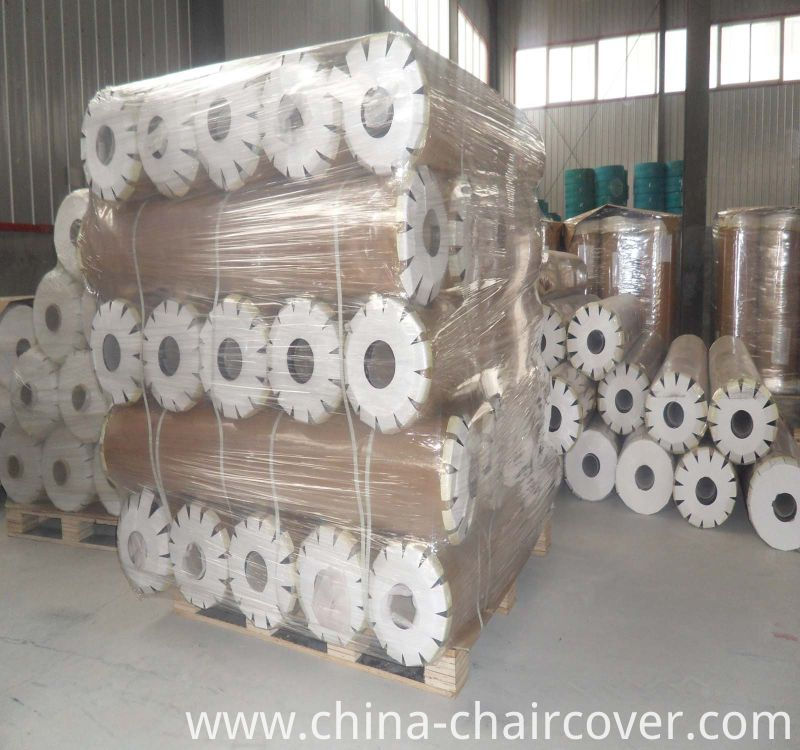

Packaging Detail: PVC shrink film for each rolls then be piled on the pallet,carton,pallet.
Delivery Detail: 7-15DAYS after we received the deposit
Specifications Flexible Transparent Clear PVC Strip Curtain
1. Flexible Transparent
2. Competitive price
3. ROHS,REACH and ISO2000  Specifications:
Type Welding strip curtains/Standard clear door curtains/Polar door curtains/Anti-Insect door curtains/Anti-static door curtains/Anti-ultraviolet door curtains
Polar Size 2mmx200mm, 3mmx300mm, 4mmx400mm, 3mmx200mm, 1mmx200mm, 2mmx300mm.
Color standard clear, blue, yellow, red, dark green,etc. we can make any color depending on your requirements.
Styles Smooth,Single ribbed,Double ribbed
Effection Transparent,Translucent,Opaque
Application Temperature -50°C to + 50°C
Size Thichness:1mm-10mm
Width:0.1m to 1.8m
Length:1 m to 50m
Packages each roll will be packed by PVC shrink film or woven bag,carton,pallet
Delivery date 7-10 workdays after receiving your prepayment
Price can be negotiable according to your large quantity
Certificates ROSH,SGS,ISO9001-2000

Technical data sheet

Flexible Transparent PVC strip curtain

Performance Test

Standard Clear Formula

Cold Formula

super polar curtain

Unit

Softness A Hardness

75+-5

65+-5

65+-5

-

Brittle Point

Approx -35

Approx -45

Approx -45

Degrees C

Falling Ball Test

"-20 No Break

"-40 No Break

"-50 No Break

Degrees C

Flexibility

"-20 No Break

"-40 No Break

"-50 No Break

Degrees C

Water Absorption

0.20%

0.20%

0.20%

%

Tensile Stress

340

420

420

%

Rupture Resistance

>5

>2

>2

N/mm

Reaction to Fire

Self-extinguishing

Self-extinguishing

Self-extinguishing

0

Flammability

Inflammable

Inflammable

Inflammable

0

Airborne Insulation

~35dB

~35 dB

~35 dB

0

Light Transmission

>80

>80

>80

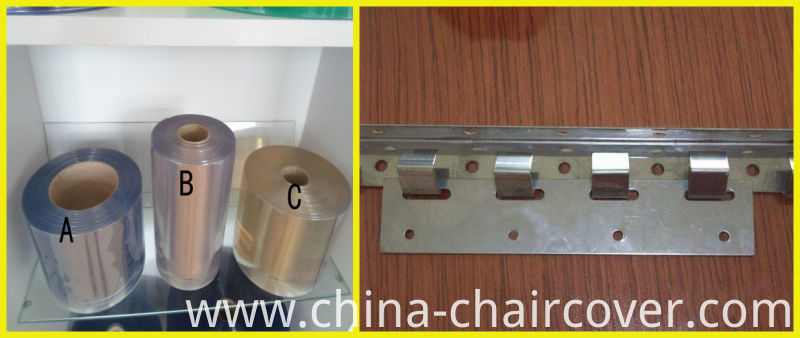

Hardware Hangers for PVC Strip Curtains
Rail Size 1m(length)*1cm(thickness)
Clip Size 150mm(w)*1mm(t)
200mm(w)*1mm(t)
300mm(w)*1mm(t)
Material Stainless Steel
Aplication one set of hanger include 3 ways
A 1mm rail,7sets clips and 21 pcs screws,be applicable for 150mm or 200mm wide PVC strip
B 1mm rail,5sets clips and 15 pcs screws,be applicable for 200mm or 300mm wide PVC strip
C 1mm rail,4sets clips and 16 pcs screws,be applicable for 300mm or 400mm wide PVC strip
Transparent PVC Strip Curtain
Transparent PVC Strip Curtain
Transparent PVC Strip Curtain

Contact us if you need more details on Pvc Strip Curtain. We are ready to answer your questions on packaging, logistics, certification or any Other aspects about Pvc Strip、Pvc Sheet. If these products fail to match your need, please contact us and we would like to provide relevant information.
